The 208MY series is a classic power turret turning and milling composite machine tool in our factory. The bed body, bed feet, headstock, saddle, tailstock and other structural components are all cast with high-quality cast iron and resin sand. After annealing and aging treatment, the dimensions are accurate and stable, and the accuracy is well maintained.
1. The processing and assembly process of the machine tool is standardized and meticulous, with excellent processing equipment and precise production management. The technology, production, and supporting system all originate from the Taiwan machine tool system, and the product quality is superior, reliable, and durable. After decades of production and application, the machine tool has become mature, reliable, and superior in performance. It enjoys a high reputation among users and has been exported to European and American countries for a long time, never declining.
2. A typical high rigidity and high precision spindle structure has high rotational accuracy and excellent axial and radial cutting forces.
3. Ball screws, bearings, servo turrets, chucks, centralized lubrication devices, encoders, cooling pumps, couplings and other supporting components are all imported from abroad, reliable and durable.
4.The feed system adopts sliding surface pasting to reduce crawling, achieve precise movement and positioning, increase the wear resistance of the moving parts of the machine tool, enhance impact resistance, and improve the service life of the machine tool.
5.The CNC system and drive unit are mature products of well-known brands; PLC has been applied for many years, ensuring safety and reliability; The electrical design of the machine tool is exquisite, the process is standardized, and the electrical appliances are all well-known brands, with low faults and durability.
6.The assembly process of the machine tool is fine, and the precision of the moving part is corrected by laser interferometer and ball and rod instrument, with mechanical accuracy far superior to the national standard.
7.After assembling the power chuck and oil cylinder in the spindle unit, the dynamic accuracy and durability of the spindle have been greatly improved through dual channel online dynamic balance instrument detection and balancing.

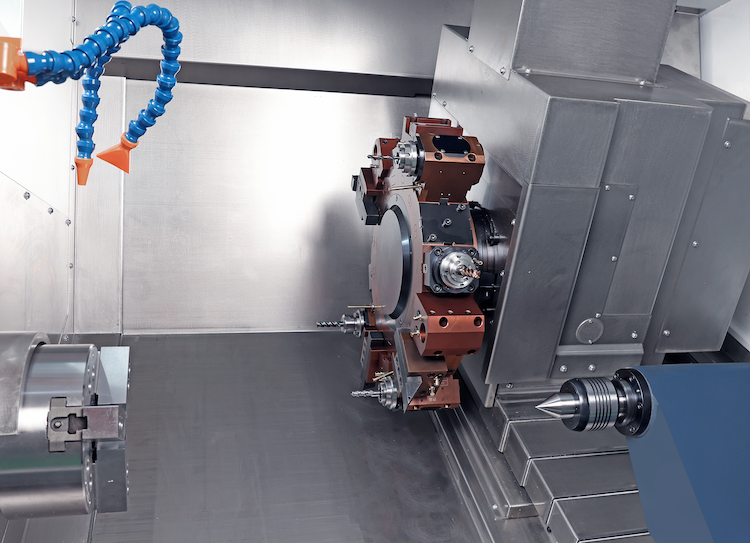

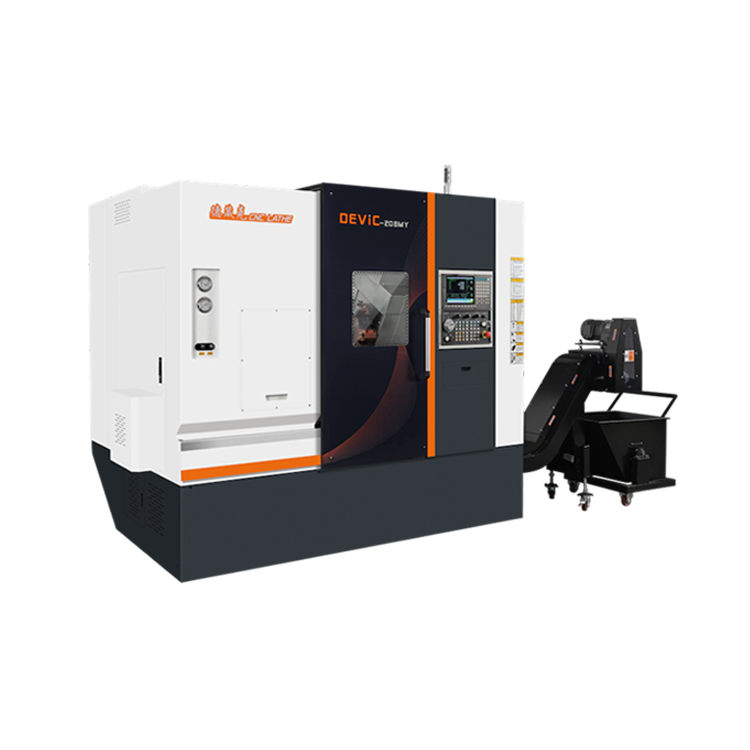

The appearance pictures are for reference only, and our company makes periodic adjustments, optimizations, and improvements.
TECHINICAL PARAMETERS
Item | Unit | Model |
Max.rotating diameter on the bed | mm | 630 |
Max.imum turning diameter | mm | 420 |
Max.imum turning length | mm | 360 |
Max.imumdiameter | mm | 52 |
Spindle end forms | A2-6 | |
Spindle front end hole taper | φ68、1：20 | |
Spindle hole diameter | mm | 62 |
Main shaft spped max | r/min | |
Number of spindle speed changes | cvt | |
15 minute rated value of the main motor | kW | 18KW |
Continuous power of the main motor | kW | 15KW |
Max.imum tool speed | r/min | 5000 |
Milling motor torque | N.m | 11.5 (overload 35) |
X/Z/Y Motor torque | N.m | 14.5/14.5/14.5 |
Chuck model | inch | 8'' |
X-axis Setting the GO speed | m/min | 20 |
Z -axis Setting the GO speed | m/min | 24 |
X-axis linear guide rail | model | 35-P |
Z-axis linear guide rail | model | 35-P |
X-axis Travel | mm | 250 |
Z-axis Travel | mm | 500 |
Y-axis Travel | mm | ±50 |
Tail seat type | Integrated hydraulic movement | |
Tailstock taper hole | MT | No.5 |
Tail seat travel | mm | 450 |
Tail thrust | Kg | 1~35 |
Knife holder form | Horizontal Power 15 Station | |
Knife tower indexing time | s | 0.12 |
Turning tool holder size | mm | 20×20 |
Boring bar diameter | mm | Φ20/φ25 |
Machine dimensions | mm | 2650×1800×2150 |
Weight of equipment | kg | 4500 |
